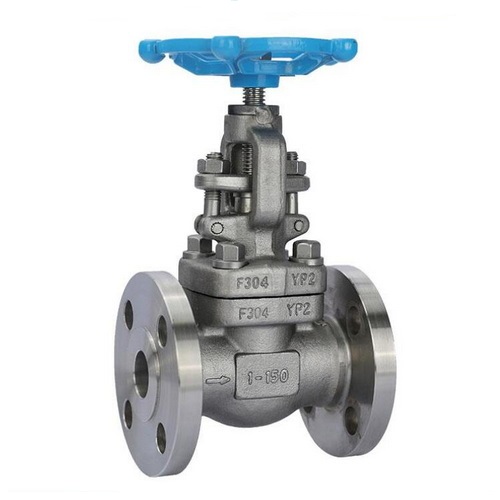

Forged Steel Gate Valve-150LB/300LB
- Type: Manual
- Model: Z41H
- Size: DN15-DN50 (1/2″-2″)
- Applicable temperature: -29 C~400 C
- Pressure rating: ANSI 150#, 300#
- Body: A105N, F304, F316, etc.
- Connection: Flanged or Welded(SW, BW)
Product Description
For more products not published on this website, please contact us, customization and OEM are also available..
We are a professional forged steel valve service provider in China, supplying a full range of forged steel gate valves:
Valve body: more than 20 materials;
Pressure: PN16-PN420, 150LB-2500LB
Connection: threaded (NPT, Rc), welded (SW), flange (RF, FM, RJ), etc.
Technical requirements:
1. Design and manufacture according to API602, ASME B16.34 requirements.
2. Flange valve structure length according to the provisions of ASME B16.10.
3. Flange end size according to ASME B16.5 (RF, FM, RJ)
4. Inspection and testing according to the provisions of API 598.

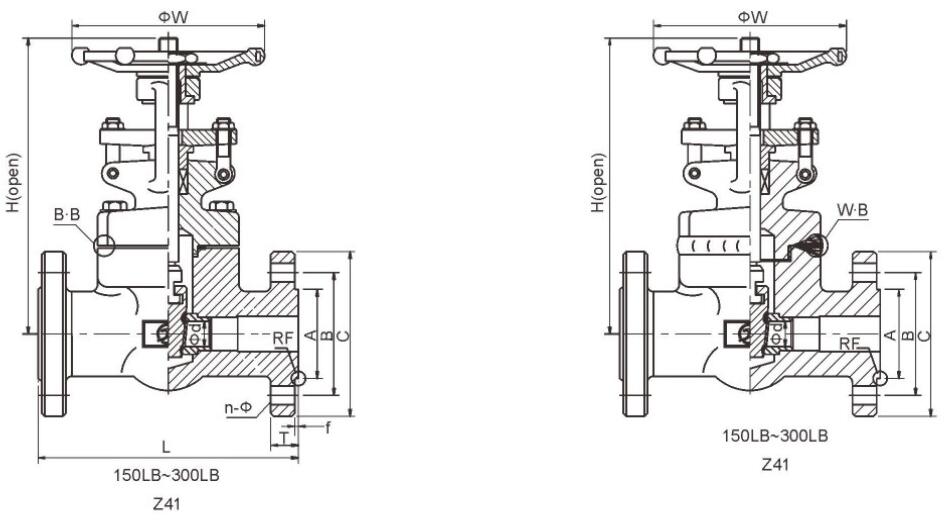

5. Structural features: B.B(central bolt) or W. B(central welding)
Flow: Full diameter (FP), Reduced diameter (RP).
6. The main material: A105N, LF2, LF3, F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, 800H, 600, 625 special materials and so on
