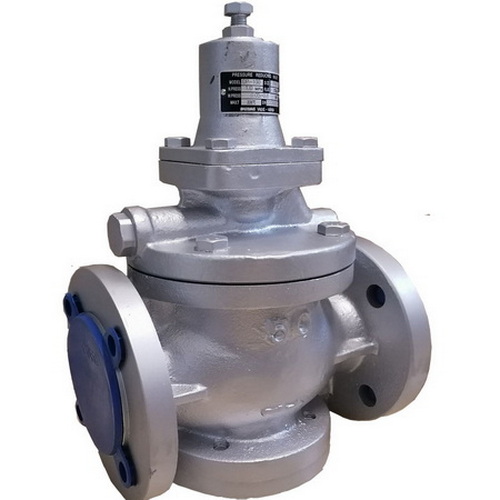

Pilot Operated Piston Type Pressure Reducing Valve for Steam

Overview

This pilot‑operated piston pressure reducing valve shares highly similar internal structure and working principle with the well‑known Yoshitake GP‑1000 steam pressure reducing valve. It adopts identical face‑to‑face installation dimensions, which supports direct on‑site replacement without modifying existing pipeline layout, greatly lowering renovation cost and construction workload for retrofitting projects.

Specially engineered for industrial steam pipelines and large‑scale plant facilities, this pressure reducing valve provides stable pressure control and highly precise pressure regulation performance. It can sustain outstanding working performance even when the inlet primary steam pressure and steam flow rate encounter drastic and frequent fluctuations, delivering consistent and reliable pressure output for your whole steam system.

Features

1. Built‑in pilot‑operated mechanism realizes high‑accuracy pressure adjustment for steam service, fine‑tuning of outlet pressure can be completed easily on site.
2. After one‑time proper calibration, the valve is capable of maintaining constant downstream pressure continuously during operation, effectively protecting downstream equipment and enhancing overall system safety.
3. Adopts simple yet robust mechanical construction. Compact solid body brings long‑term durability, meanwhile facilitating convenient on‑site piping work and quick installation.
4. Retains excellent pressure regulating performance under severe working conditions, even if the inlet primary steam pressure changes within a wide fluctuation range.
5. The outlet pressure stays stable at the preset value, which will not be affected by continuous changes of secondary‑side flow demand.
6. Direct replacement compatible with Yoshitake GP‑1000, same installation length, no need to cut or rework existing piping.

Applications

• Main industrial steam supply pipelines in factories
• Process production facilities for chemical, textile, food & beverage industries
• Central heating systems for manufacturing plants and workshop buildings
• Steam distribution for mechanical processing and process equipment
• Equipment renovation and spare‑part replacement projects originally using Yoshitake GP‑1000 series valves
