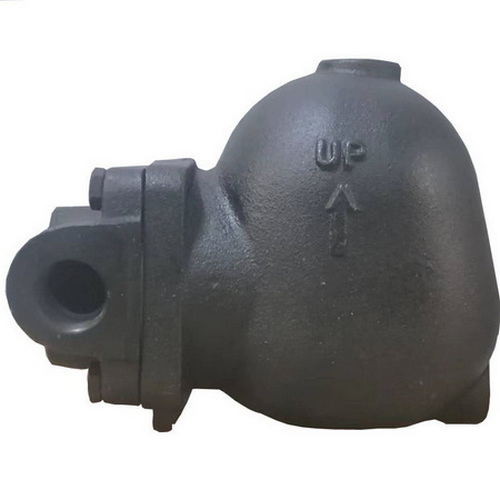

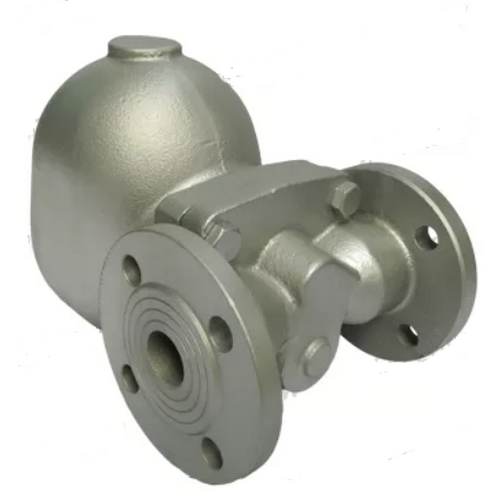

High Discharge Capacity Lever Float Steam Trap

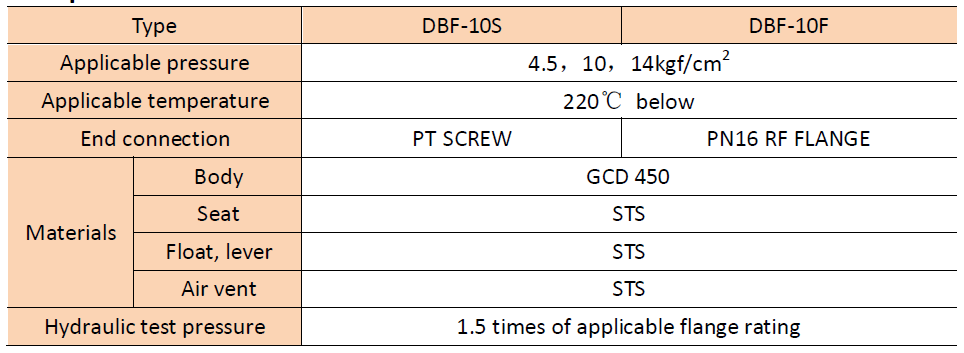

- Model: DBF-10F
- Size: DN15-DN50 (1/2″-2″)
- Application temperature: Below 220°C
- Applicable pressure: Max. 14 Bar (Kgf/cm2)
- Differential pressure: 4.5, 10, 14 Bar (Kgf/cm2)
- Connection type: Flanged
- Body: GCD450
- Trims: Stainless steel
- Suitable for steam service
- Continuous emissions, large discharge volume.
- Zero steam leakage and excellent energy-saving performance.
Product Description
This large‑discharge capacity float type steam trap features high condensate discharge capacity, designed for handling heavy condensate loads in process heating equipment, heat exchangers and steam piping systems.
It continuously discharges large volumes of hot condensate with minimal steam loss, performing reliably under fluctuating differential pressure conditions. Free of manual intervention, the float‑operated mechanism opens and closes automatically in response to condensate levels.
Main Features
- High condensate discharge capacity
- Continuous condensate draining
- Low steam loss
- Stable performance under varying working pressure
- Suitable for heavy‑duty industrial steam systems
Key Parameters Reference
- Max Discharge Capacity: up to 2000 kg/h
- Working Differential Pressure: 0.1‑14 bar
- Medium: saturated steam & hot condensate
